Piranhamax – 4 DI

Manufacture ID: 410160-1

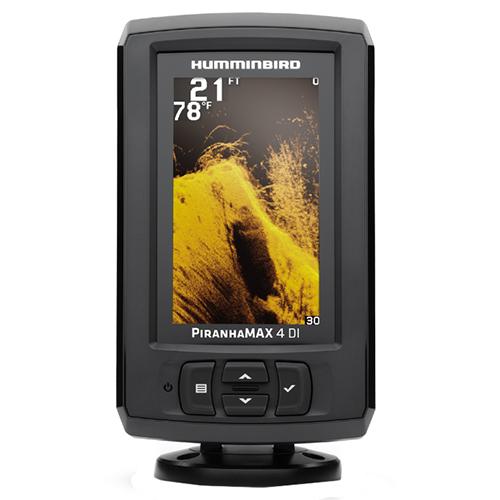

The PiranhaMAX 4 DI features a 256 color 480V X 272H, 4.3″ display with 2400 watts PTP power output with Down Imaging sonar.

Features:

– Down Imaging Sonar: Get a fish-eye’s view of what’s happening below your boat. Incredible images are created with High-frequency sound waves

Specifications:

– Display Size – Diagonal: 4.3″
– Display Pixel Matrix: 480H x 272V
– Display Type: Color TFT
– Display Colors Grayscale: 256 Colors
– Sonar Standard: Down Imaging/Dual Beam
– Standard Sonar Coverage: 28, 16 & 75 @ -10db
– Standard Sonar Frequency: 200/455/455 kHz
– Target Separation: 2.5″
– Power Output RMS: 300 Watts
– Power Output Peak to Peak: 2400 Watts
– Depth Capability: 600′
– Temperature: Built-In Transducer
– Speed: Not Supported
– Backlight: Yes
– Unit Size – Gimbal Mount: 3.914″ W x 7.335″ H x 3.621″ D
– Mount A Type: Gimbal Mount
– Unit Size – Indash Mount: In Dash
– Mount B Unit Size2: 3.914″ W x 6.770″ H x 2.600″ D
– Mounting Options: Gimbal or Optional In-Dash
– Transducer Standard: XNT 9 DI T
– Transducer Mounting: Transom
– Power Input: 10.8-20 VDC
– Power Draw: 180mA
