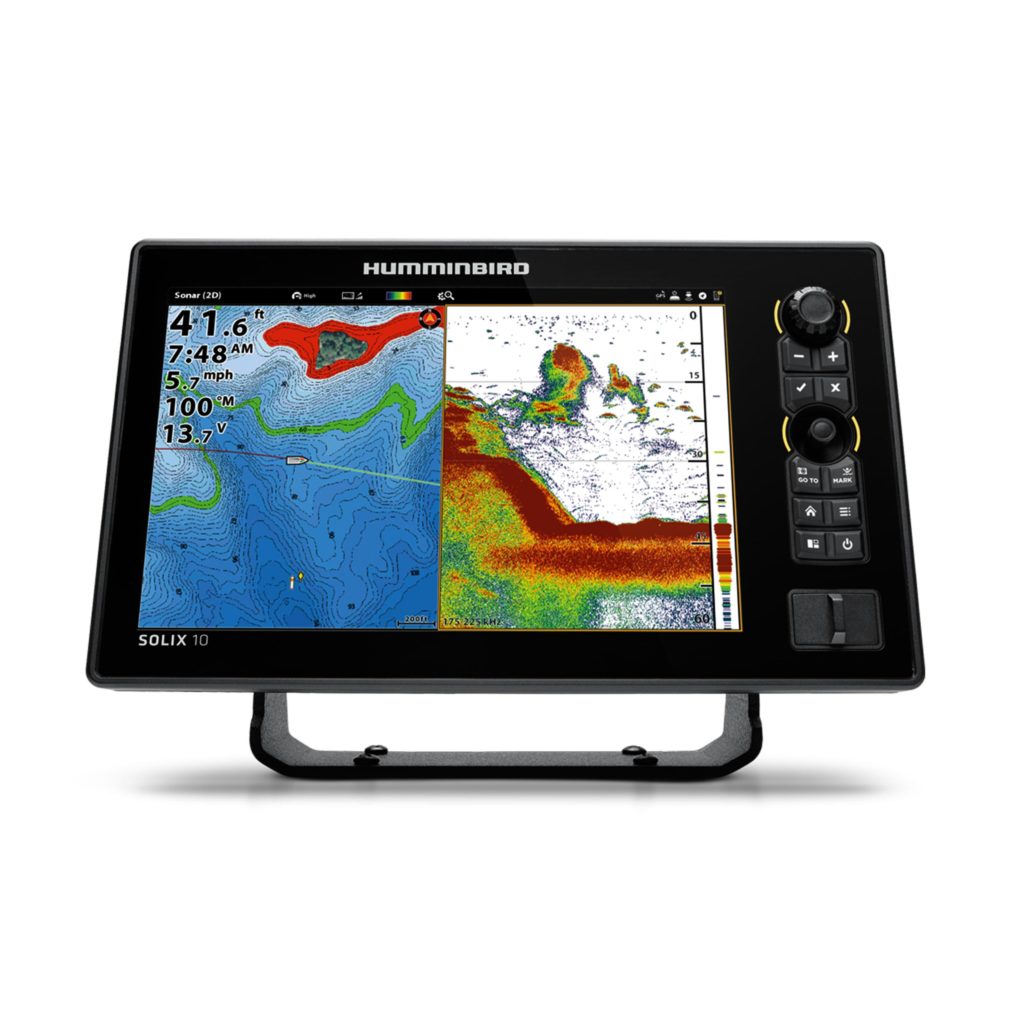

SOLIX 10 – CHIRP GPS

Manufacture ID: 410470-1

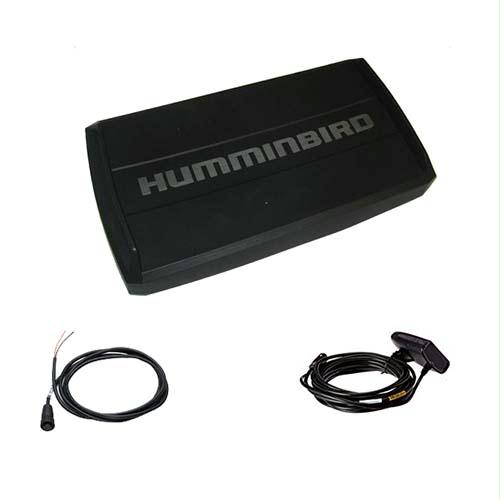

The SOLIX 10 CHIRP GPS features a large 10.1″ display with LED backlight, CHIRP Digital Sonar with up to 8000 Watts PTP power output, GPS Chartplotting with built-in Humminbird Basemap, Bluetooth, Ethernet networking capabilities, and AutoChart Live with depth, vegetation and bottom hardness mapping. Includes unit cover and Cross Touch Interface. Dual micro SD card reader.

Features:

– Broadband CHIRP Sonar
– Xtreme Depth
– 360 Imaging
– Switch Fire
– Dual Beam Plus Sonar
– Internal GPS
– Upgradable Software
– High Definition Display
– Ethernet
– HD Radar
– AIS
– Auto Pilot
– I-Pilot Link
– AutoChart Live
– Cross Touch
– Smart Strike
– NMEA 0183/2000
– Precision GPS
– Micro SD Card Reader

Specifications:

– Display Size: 10.1″ (Diagonal)
– Display Pixel Matrix: 1280H x 800V
– Display Type: Color TFT
– Display Colors Grayscale: 16 Bit
– Sonar Standard: CHIRP Digital Sonar/DualBeam PLUS
– Standard Sonar Coverage: 20 and 60 at -10db
– Standard Sonar Frequency: 83/200 kHz
– Sonar Optional: 50kHz, 50/Low Airmar CHIRP and SM3000
– Target Separation: 2.5″
– Power Output RMS: 1000 Watts
– Power Output Peak to Peak: 8000 Watts
– Depth Capability: 1500′ and 5000′
– Temperature: Built-In Transducer
– Speed: GPS Speed Included
– Backlight: LED
